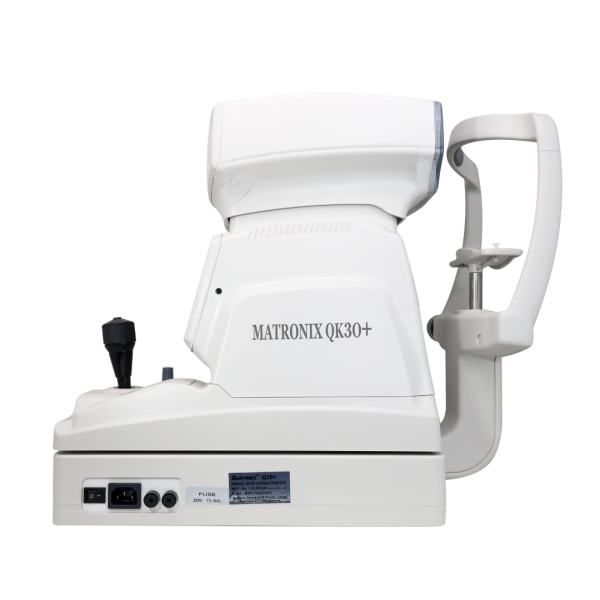

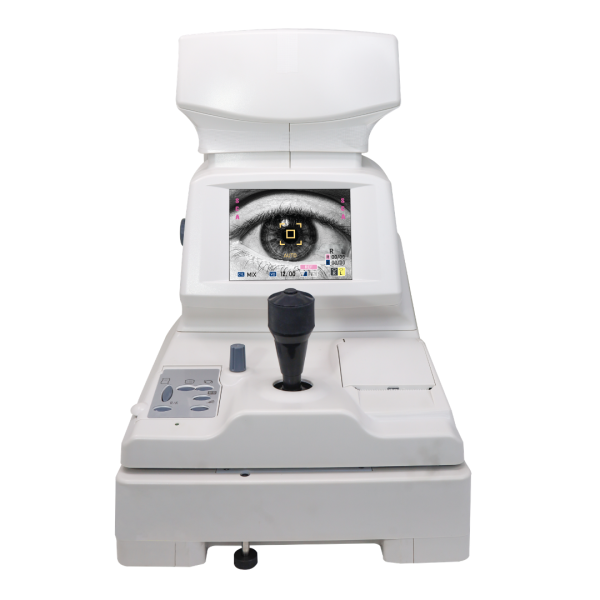

Auto Refractometer Qk30+
Product Specification :-
| Monitor | 5.7inchTFTColorLCD |
| Builtinprinter | importedthermalprinter |
| BatterySavingMode | 5Minuteswithoutoperation automaticScreenSaver |
| PowerSupply | AC110-240V;50/60HZ |
| Weight | 18Kg |
| Comeal Curvature Radius: | 5-10mm (0.01mm) |
| Comeal Diopter | (33.00-67.0000.12/0.250 |
| Comeal Astigmatism | (0.00-15.00) D (0.12/0.250) |
| Axial | 1-180 |
| Size | 2751WIX475(D) X 465(H) |
| Comeal Diameter | 2.0-12.00mm |
Product Description
The AUTO REFRACTOMETER QK30+ is a leading-edge diagnostic equipment developed to accurately and efficiently evaluate refractive errors in the human eye. This gadget, designed for optometrists and ophthalmologists, combines advanced technology with user-friendly features to deliver precise and consistent results in the clinical setting. With a starting price of Rs. 1,90,000, the QK30+ offers exceptional value for its high-end capabilities and robust performance.
Key Features
High Precision Measurement
The QK30+ delivers highly accurate readings of sphere, cylinder and axis, enabling precise prescriptions and effective diagnosis of refractive errors.
Auto Tracking and Auto Shot
Equipped with automatic eye tracking and measurement capabilities, the QK30+ simplifies the examination process, reducing the time required and minimizing operator error.
User-Friendly Interface
The intuitive touchscreen interface provides easy navigation and operation allowing clinicians to perform tests quickly and efficiently.
Advanced Technology
Utilizes cutting-edge optical and imaging technology to ensure high-quality measurements and consistent performance.
Compact and Ergonomic Design
The QK30+ features a sleek and compact design, making it suitable for various clinical environments. Its ergonomic design enhances patient comfort during examinations.
Versatile Connectivity
The device supports various connectivity options, including USB and wireless connections, facilitating seamless integration with practice management software and electronic health records.
Automatic Pupil Detection
Automatically detects and focuses on the patient’s pupil, ensuring accurate alignment and measurement without manual adjustments.
Dual Measurement Modes
Offers both automatic and manual measurement modes, providing flexibility to the operator based on the clinical scenario and patient needs.
Comparison Of Auto Refractometer Qk30+
| Products | |
 |
 |
|---|---|---|---|
| Features | Auto Refractometer Qk30+ | Auto Refractometer Ai 20 | AUTO REFRACTOMETER Q30+ |
| Monitor Size | 5.7" TFT Color LCD | 9" Touch LCD Monitor | 5.7" TFT Color LCD |
| Printer Type | Built-in imported thermal printer | Import thermal printer | Built-in imported thermal printer |
| Screen Saver / Power Saving Mode | Auto screen saver after 5 mins,10 mins,15mins | 1/5/10/20/40 min automatic screensaver | Auto screen saver after 5 mins,10 mins,15mins |
| Weight | 18 kg | 20 kg | 18 kg |
| Sphere Measurement Range | −25D to +22D (0.12/0.25D steps) | −25.00D to +22.00D | −25D to +22D (0.12/0.25D steps) |
| Cylinder Range | −8D to +8D (0.12/0.25D steps) | −8D | −8D to +8D (0.12/0.25D steps) |
| Astigmatism Axis Range | 1–180° | 0–180° | 0–180° |
| Corneal Curvature Radius | 5–10 mm (0.01 mm) | 5–10 mm (0.01 mm) | 5–10 mm (0.01 mm) |
| Corneal Diopter Range | 33.00–67.00 D (0.12/0.25D) | 33.00–67.00 D (0.12/0.25D) | 33.00–67.00 D (0.12/0.25D) |
| Corneal Astigmatism | 0.00–15.00 D (0.12/0.25D) | 0.00–15.00 D (0.12/0.25D) | 0.00–15.00 D (0.12/0.25D) |
| Corneal Diameter | 2.0–12.0 mm | 2.0–12.0 mm | 2.0–12.0 mm |
| Vertical Distance (VD) | 0 mm, 12 mm, 13.75 mm, 15 mm | 0 mm, 12 mm, 13.75 mm, 15 mm | 0 mm, 12 mm, 13.75 mm, 15 mm |
| Dimension (W × D × H) | 275 × 475 × 465 mm | 300 × 450 × 500–530 mm | 275 × 509 × 430–460 mm |
| Unique Features | iol mode and manual chinrest | Larger 9-inch touchscreen and 180deg rotable display | iol mode and manual chinrest |
| Best Use For | Ophthalmology clinics performing IOL assessments; compact setups; cost-effective clinical use | Premium optical stores & high-footfall clinics; fast patient interaction and operator comfort | Routine clinical refraction; compact refraction rooms; reliable daily autorefractor |
