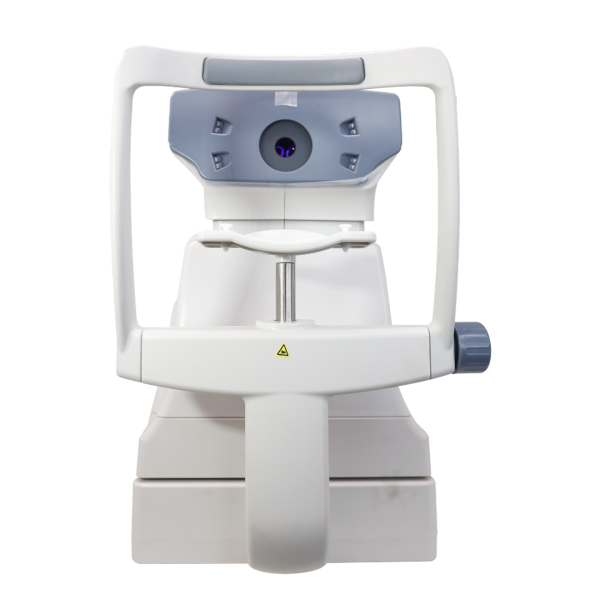

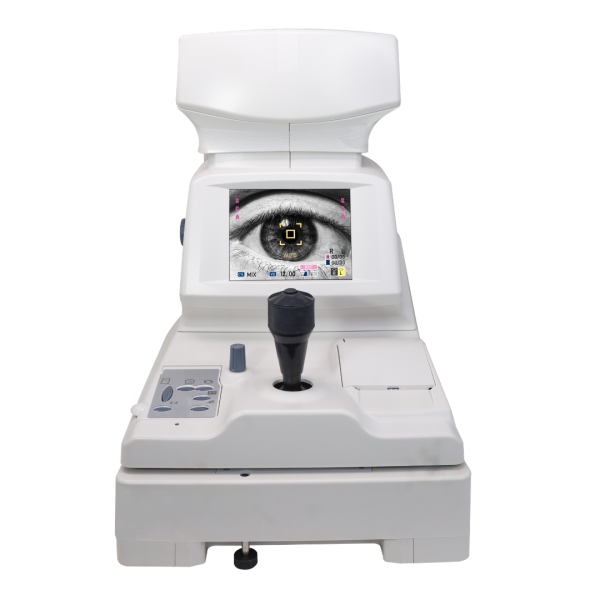

AUTO REFRACTOMETER Q30+

Product Specification :-

Brand	Matronix
Touchscreen Monitor Size	5.7
Pupil Distance	45~85 mm, 0.5mm steps
Weight (in Kg)	18Kg
Measurement Mode	Refractometry Mode
Data Output Options	Built in Printer
Refraction Measurement	Sphere (sph): -25D~ 22D, 0.12D/0.25D steps Cylinder (cyl): -80D~ 8D, 0.12D/0.25D steps Axis : 0~180
Vertical Distance	0m, 12mm, 13.75mm
Minimum Pupil Diameter	02.0mm
Charter	Automatic fogging method
Display	5.7 inch true color LCD
Print	Import thermal printer
Power Supply	100~120V/200~240V, 50/60HZ
Dimension	275(W) * 509(D)*430-460(H)mm
Model Name/Number	Q 30+

Get Latest Price

Advanced Optics for Superior Clarity with Auto Refractometers Q30+

The Auto Refractometer Q30+ was developed by Matronix for optometrists and other eye care specialists that require quick, dependable, and consistent refraction results. It provides fully automated refractive error measurement, which improves the efficiency and smoothness of eye exams. The Q30+ stands out as a clever, contemporary solution for routine clinical use thanks to its user-friendly touchscreen interface, fast operation, remarkable accuracy, and integrated printer.

The Auto Refractometer Q30+ is a high-performance, accurately manufactured tool for optometrists and other eye care specialists looking for dependability, speed, and accuracy. With its fully automated refraction process, sophisticated optical system, and user-friendly high-resolution touchscreen, the Q30+ provides quick, repeatable, and extremely accurate measurements that allow clinics to manage more patients effectively while guaranteeing the best prescriptions. Its strong construction and long-lasting components ensure long-lasting performance even under intensive daily use, and its integrated thermal printer simplifies paperwork. Its small size, ergonomic design, auto-alignment, and fogging capabilities make it simple to incorporate into any clinical workflow, saving room and lowering human error. The Q30+ is the perfect long-term investment for contemporary eye care procedures because of its CE and ISO certification, which guarantee worldwide quality and safety standards, and its reliable after-sales assistance and warranty coverage, which offer peace of mind.

Comparison Of AUTO REFRACTOMETER Q30+

Products		$Auto Refractometer Ai 20$	$Auto Refractometer Qk30+$
Features	AUTO REFRACTOMETER Q30+	Auto Refractometer Ai 20	Auto Refractometer Qk30+
Monitor Size	5.7" TFT Color LCD	9" Touch LCD Monitor	5.7" TFT Color LCD
Printer Type	Built-in imported thermal printer	Import thermal printer	Built-in imported thermal printer
Screen Saver / Power Saving Mode	Auto screen saver after 5 mins,10 mins,15mins	1/5/10/20/40 min automatic screensaver	Auto screen saver after 5 mins,10 mins,15mins
Weight	18 kg	20 kg	18 kg
Sphere Measurement Range	−25D to +22D (0.12/0.25D steps)	−25.00D to +22.00D	−25D to +22D (0.12/0.25D steps)
Cylinder Range	−8D to +8D (0.12/0.25D steps)	−8D	−8D to +8D (0.12/0.25D steps)
Astigmatism Axis Range	0–180°	0–180°	1–180°
Corneal Curvature Radius	5–10 mm (0.01 mm)	5–10 mm (0.01 mm)	5–10 mm (0.01 mm)
Corneal Diopter Range	33.00–67.00 D (0.12/0.25D)	33.00–67.00 D (0.12/0.25D)	33.00–67.00 D (0.12/0.25D)
Corneal Astigmatism	0.00–15.00 D (0.12/0.25D)	0.00–15.00 D (0.12/0.25D)	0.00–15.00 D (0.12/0.25D)
Corneal Diameter	2.0–12.0 mm	2.0–12.0 mm	2.0–12.0 mm
Vertical Distance (VD)	0 mm, 12 mm, 13.75 mm, 15 mm	0 mm, 12 mm, 13.75 mm, 15 mm	0 mm, 12 mm, 13.75 mm, 15 mm
Dimension (W × D × H)	275 × 509 × 430–460 mm	300 × 450 × 500–530 mm	275 × 475 × 465 mm
Unique Features	iol mode and manual chinrest	Larger 9-inch touchscreen and 180deg rotable display	iol mode and manual chinrest
Best Use For	Routine clinical refraction; compact refraction rooms; reliable daily autorefractor	Premium optical stores & high-footfall clinics; fast patient interaction and operator comfort	Ophthalmology clinics performing IOL assessments; compact setups; cost-effective clinical use
